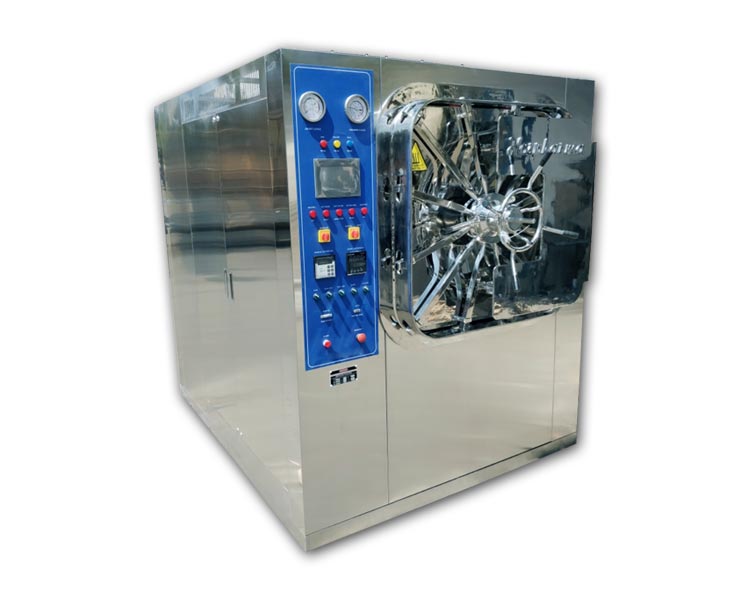

Rectangular Model
Features
- Maintenance free
- Contact parts : S.S.304 / 316 Quality.
- Models are available in Semi Automatic as well as Fully Automatic Touch Screen PLC.
- Site validation option.
- Double Door, Flush mounting with Door Interlocking systems.
- Safety Devices :-
- Pressure Switch, Safety Valves and Self Locking of Door when chamber is under pressure.
- Contact parts : S.S.304 / 316 Quality.
- Vacuum Breaker for jacket.
- Steam Generator with gauge glass valves and low water level protection.
Details
- Working Pressure : 1.26 / 2.2 kgf/cm.Sq
- Working Temperature : 121oC/134oC.
- Mode of Heating : Electrically heated by water immersion heaters.
Standard Fitting
Multi operating valve, Quick drying apparatus, Accidental vaccum beaker valve, Plug screen, Ejector system , Chamber condensate line with steam trap & Check valve, Jacket condensateline with steam trap & check valve, Safety valve, Air valve, Vaccum breaker, Pressure guage, Compound guage, Dial thermometer, Baffle, etc.
| Rectangular Model | ||||
|---|---|---|---|---|
| Volume | Chamber Dimension | Electric Load | ||
| Ltr approx | Breadth | Height | Depth | KW |
| 175 | 450 | 450 | 900 | 18 |
| 450 | 600 | 600 | 1200 | 18 |
| 850 | 600 | 900 | 1500 | 36 |
| 1250 | 900 | 900 | 1500 | 36 |
| Direct steam heated from Customer's boiler | ||||
| 1500 | 900 | 900 | 1800 | |
| 2000 | 900 | 1050 | 2100 | |
| 2500 | 1050 | 1200 | 2100 | |
| 3000 | 1050 | 1200 | 2400 | |
| 3500 | 1200 | 1200 | 2400 | |
