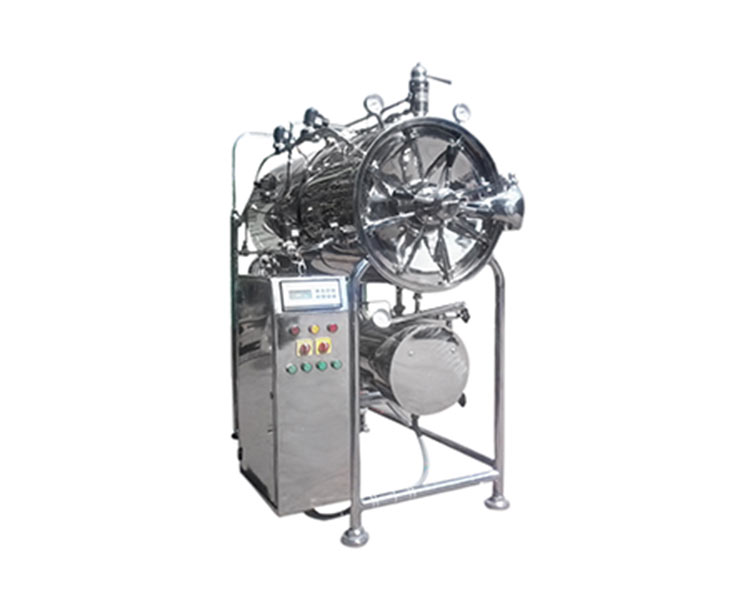

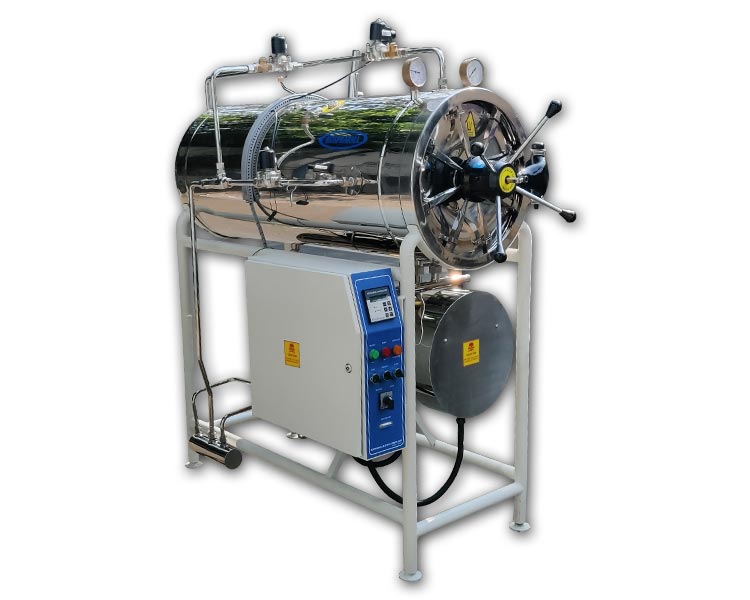

Cylindrical Model
Features
- Maintenance free
- Contact parts : S.S.304 / 316 Quality.
- In case of GMP complete S.S (Material of construction)
- Models are available in Semi Automatic as well as Fully Automatic Touch Screen PLC.
- Site validation option.
- Double Door, Flush mounting with Door Interlocking systems.
- Safety Devices :-
- Pressure Switch, Safety Valves and Self Locking of Door when chamber is under pressure.
- Vacuum Breaker for jacket.
- Steam Generator with gauge glass valves and low water level protection.
Details
- Working Pressure : 1.26 / 2.2 kgf/cm.Sq
- Working temperature : 121oC/134oC.
- Mode of heating : Electrically heated by water immersion heaters.
Standard Fitting
Multi operating valve, Quick drying apparatus, Accidental vacuum breaker valve, Plug screen, Ejector system , Chamber condensate line with steam trap & check valve, Safety valve, Air valve, Vacuum breaker, Pressure gauge, Compound gauge, Dial thermometer, Baffle, Stainless Steel perforated tray etc.
| Cylindrical Model | |||
|---|---|---|---|
| Volume | Chamber Dimension | Electric Load | |
| Ltr approx | Diameter | Depth | KW |
| 75 | 400 | 600 | 6 |
| 100 | 400 | 900 | 9 |
| 150 | 400 | 1200 | 9 |
| 175 | 500 | 900 | 9 |
| 225 | 500 | 1200 | 12 |
| 500 | 750 | 1200 | 18 |
